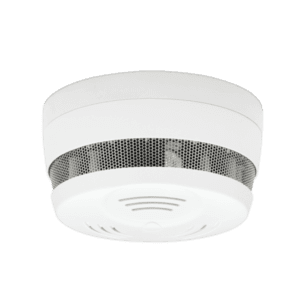

Fitted with CAVIUS CORE technology, the Wireless Family, Mains powered Photoelectric Smoke Alarm is the smallest and most aesthetically pleasing 240v hardwired interconnected smoke alarm in New Zealand.
The CAVIUS Wireless Family range of smoke alarms interconnect with each other using, built in, innovative Radio Frequency technology, so that when one alarm activates, they all sound. The range between alarms will depend on the building materials and should be tested in each individual case. Setting up and interconnecting your alarms is simple and takes less than a minute.
CAVIUS alarms have been designed and manufactured to cope with the harsh environments, they include two levels of mesh screening to minimise insect and dust contamination – alleviating the potential for nuisance alarms. They have an easy to access 10-minute hush button (or the alarms can be silenced using the CAVIUS Smart Remote).
The AS3786:2014 certified alarm performs a chamber sensitivity calibration every 365 days allowing them to retain the optimal safety detection during its lifetime and comes with a 10-year warranty.
Photoelectric Smoke Alarms should be installed in all bedrooms, lounges and hallways. For other areas where a smoke alarm cannot be installed (such as the kitchen, garage, workshop, or laundry) a Wireless Family Heat Alarm is recommended.

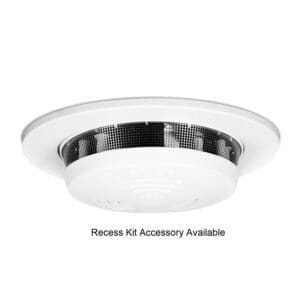

NB: Mains Powered or hard wired smoke alarms need to be installed by a professional or registered electrician. There is a recess kit available for this product 2901RK
Product Code: 2203 CAVMP
Features
- NZ BUILDING CODE COMPLIANT
- 10 YEAR BATTERY BACK UP Duracell Lithium (replaceable)
- NEW RF TECHNOLOGY with the ability to connect up to 32 Wireless Family alarms
- INTELLIGENT TEST BUTTON confirms the alarm is functioning correctly
- 10 MINUTE hush button
- 30 DAY low battery alert
- EASY INSTALLATION with the unique smart-clip ceiling mechanism
- AS3786:2014 certified, NZ Building Code, RTA and NZS 4514:2021 compliant
- POWER ON Green ‘Power On’ LED light as a visible indicator of mains power supply CA
- ACCESSORY OPTION Ability to work as a lamp hook, to avoid an extra spot on the ceiling
- CONNECTS with CAVIUS Wireless Family Mains Powered Smoke Alarm, Wireless Family Smart remote, Wireless Family 5 Year Smoke Alarm and Wireless Family Thermal Heat Alarm
Technical Specifications
- SENSOR TYPE: Photoelectric/Optical smoke detection
- BATTERY: Duracell Lithium CR2 3V
- INTERCONNECTED RADIO FREQUENCY: 926.365 MHz
- RANGE: Maximum 100m in plain line of sight
- CHAMBER: Optical reading in the chamber every 8 seconds
- VISUAL INDICATOR: Activated alarm’s LED will flash
- SOUND LEVEL: 85db at 3 meters
- OPTIMAL TEMPERATURE OF FUNCTION: +4ºC to +38ºC
- MAXIMUM HUMIDITY: +95% Rh non-condensing
- CERTIFICATIONS: • AS3786:2014 • NF292 • RoHs • Reach • ActivFire®
