Fitted with CAVIUS CORE technology, the Wireless Family, 10 Year Photoelectric Smoke Alarm is the smallest and most aesthetically pleasing interconnected alarm in New Zealand.

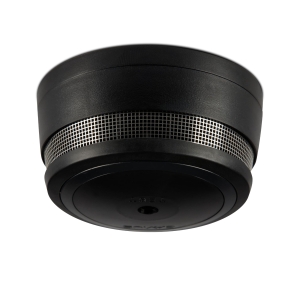

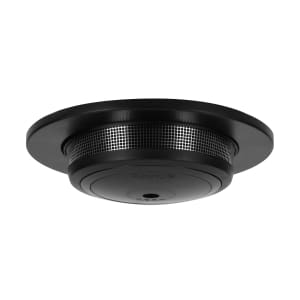

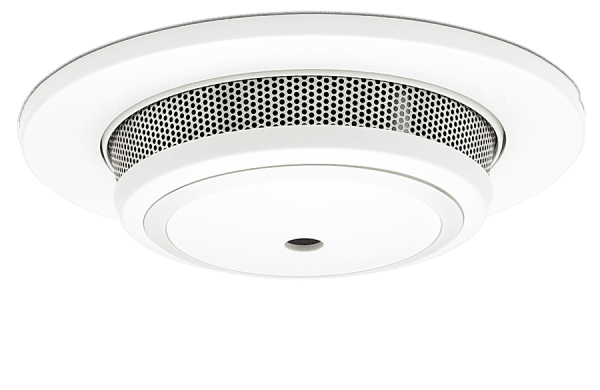

The alarm comes with two installation options; either flush mounted (38mm profile) or recessed (19mm profile) to give you a low-profile and sleek look.
The CAVIUS Wireless Family range of smoke alarms interconnect with each other using, built in, innovative Radio Frequency technology, so that when one alarm activates, they all sound. The range between alarms will depend on the building materials and should be tested in each individual case.
The battery-operated CAVIUS Wireless Family alarms require no wiring or internet connection. Setting up and interconnecting your alarms is simple and takes less than a minute.

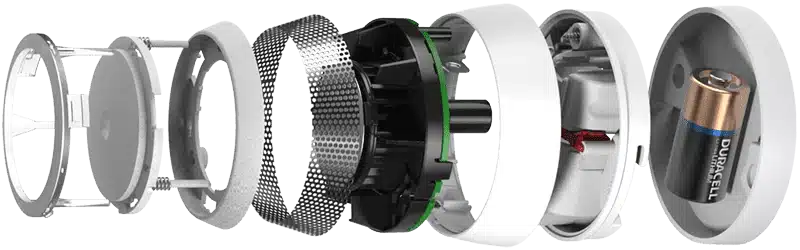

CAVIUS alarms have been designed and manufactured to cope with the harsh environments, they include two levels of mesh screening to minimise insect and dust contamination – alleviating the potential for nuisance alarms. They have an easy to access 10-minute hush button (or the alarms can be silenced using the CAVIUS Smart Remote).
The AS3786:2014 certified alarm performs a chamber sensitivity calibration every 365 days allowing them to retain the optimal safety detection during its lifetime and comes with a 10-year warranty.
Photoelectric Smoke Alarms should be installed in all bedrooms, lounges and hallways. For other areas where a smoke alarm cannot be installed (such as the kitchen, garage, workshop, or laundry) a Wireless Family Heat Alarm is recommended.
Product Code: 2117 CAV10WF
Features
- 10 YEAR LONG-LIFE Huiderui Lithium CR123A 3V, 2800mAh (sealed)
- SOUND LEVEL 85db at 3 meters
- NEW RF TECHNOLOGY allows connection to up to 32 Wireless Family alarms
- INTELLIGENT test confirms the alarm is functioning correctly
- 10 MINUTE hush button
- 30 DAY low battery alert
- EASY INSTALLATION with the unique smart-clip ceiling mechanism
- CEILING OR WALL INSTALLATION – There are two installation options available – recessed and flush mount. Profile: 19mm (Recessed) 36mm (Flush)
- AS3786:2014 certified, NZ Building Code and NZS 4514:2021 compliant
- CONNECTS with CAVIUS Wireless Family Mains Powered Smoke Alarm, Wireless Family Smart remote, Wireless Family 5 Year Smoke Alarm and Wireless Family Thermal Heat Alarm
Technical Specifications
- SENSOR TYPE: Photoelectric/Optical smoke detection
- BATTERY: 2 x Huiderui Lithium CR123A 3V, 2800mAh
- INTERCONNECTED RADIO FREQUENCY: 926.365 MHz
- RANGE: Maximum 100m in plain line of sight
- CHAMBER: Optical reading in the chamber every 8 seconds
- VISUAL INDICATOR: Activated alarm’s LED will flash
- OPTIMAL TEMPERATURE OF FUNCTION: +4ºC to +38ºC
- MAXIMUM HUMIDITY: +95% Rh non-condensing
- DIMENSIONS: 78mm diameter
- CERTIFICATIONS: • AS3786:2014 • NF292 • RoHs • Reach • ActivFire®
